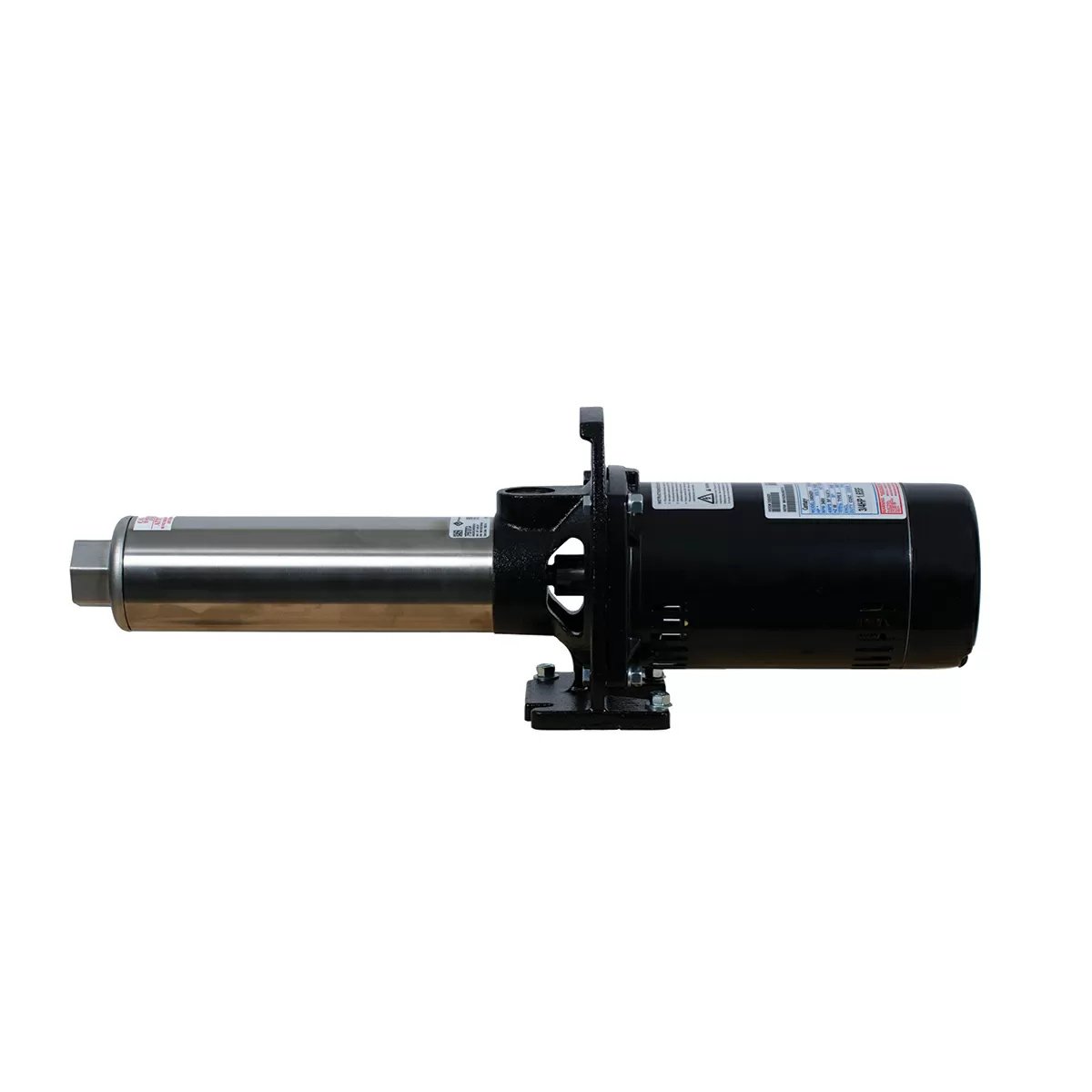

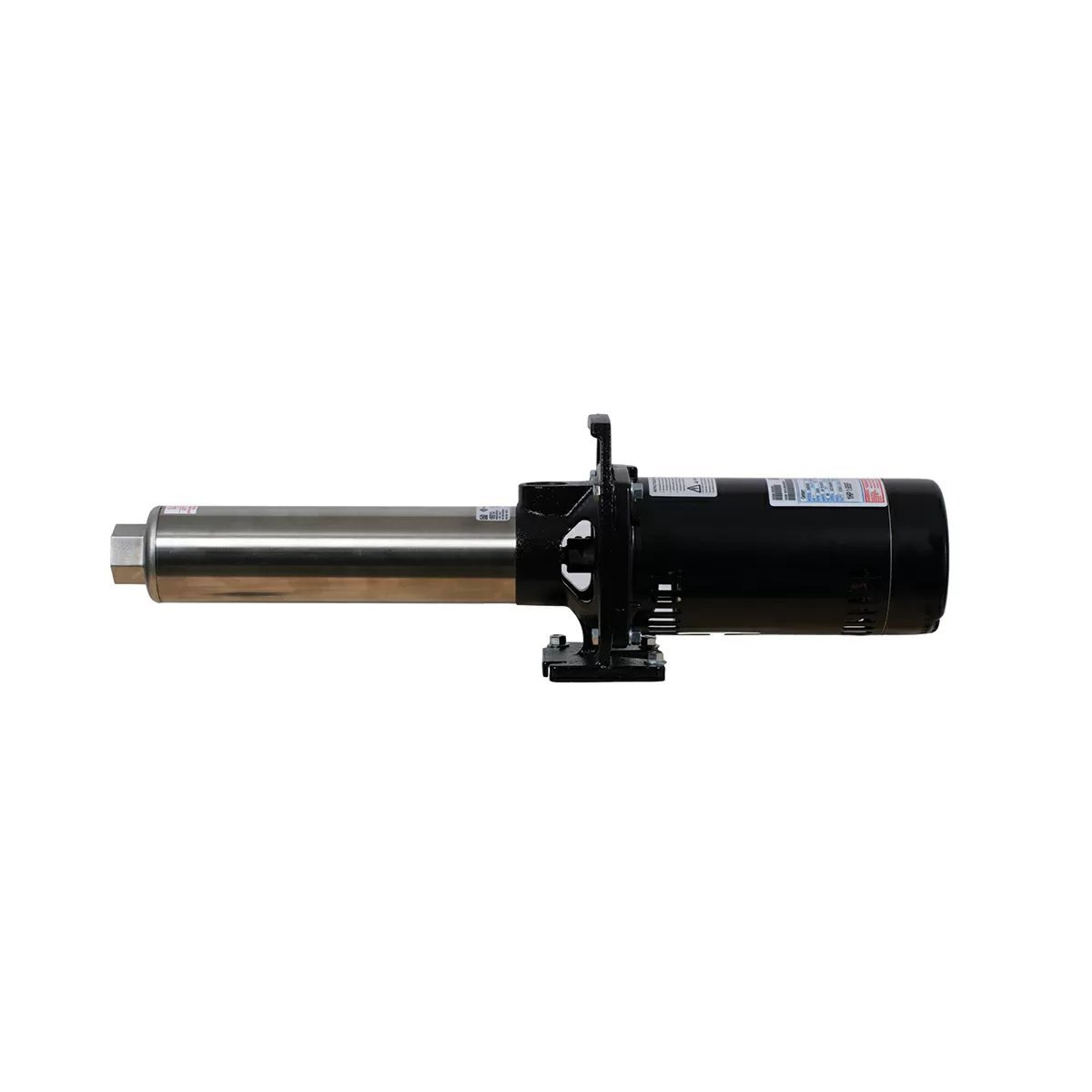

Franklin Electric BT4 Cast Iron Booster Pump - High Pressure Water Pump for Home, Irrigation & Industrial Use

The Cast Iron BT4 Horizontal Booster Pumps are low to medium capacity, high-pressure, multi-stage units. They can function as multi-purpose high-pressure pumps, boosting water pressure from either city mains or private water systems. They are also ideal for applications requiring more pressure than flow.

Features

• Designed for boosting water pressure from a variety of sources including municipal & private water systems
• Stainless steel discharge head on all models
• Cast iron motor bracket with a rugged support foot for horizontal or vertical mounting & a handle for portability of the unit
• The booster pump is built by Franklin Electric’s Patented (U.S.) Patent 7,290,984 Tri-Seal floating stage system, for maximum efficiency, longevity & performance
• Assembled with the highest quality materials of construction, such as Celcon impellers, Noryl diffusers & 300 series stainless steel for the hub, eye seals, shaft & shell
• Easily serviced through a back pull-out design, which leaves all plumbing & the pump undisturbed in their original location
• Industry proven square flange motors
• Dual voltage motor, set to run with either 115 V or 230 V incoming power
• Shut-off pressures up to 270 PSI, flow rates from 5 to 25 GPM & temperatures up to 120 °F

Applications

• Boosting water pressure from either city mains or private water systems
• Pressure washing buildings & floors
• Poultry houses
• Spray cooling equipment
• Lawn & crop irrigation
• Evaporative cooling system misters
• Water circulation
• General purpose pumping

Specifications
