Manfrotto 504X Professional Fluid Video Head with Flat Base - Smooth Pan & Tilt for DSLR & Mirrorless Cameras - Perfect for Videography, Live Streaming & Film Production

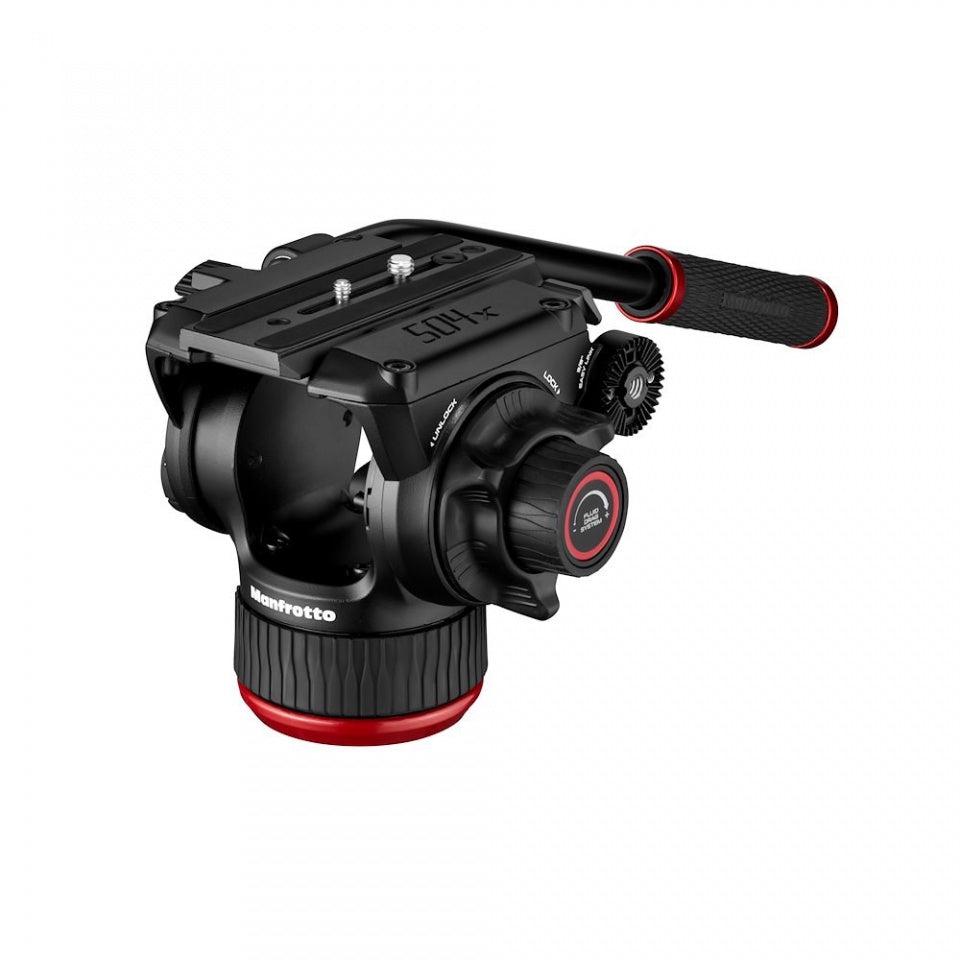

504X fluid video head is the evolution of the hugely successful 504HD.

Variable fluid Drag System on PAN & TILT performed by new fluid 4 steps counterbalance system up to 6 5 kg Flat base for shooting on sliders jibs or other accessories Sliding plate side lock attachment Easy link connectors with Manfrotto anti-rotation technology.

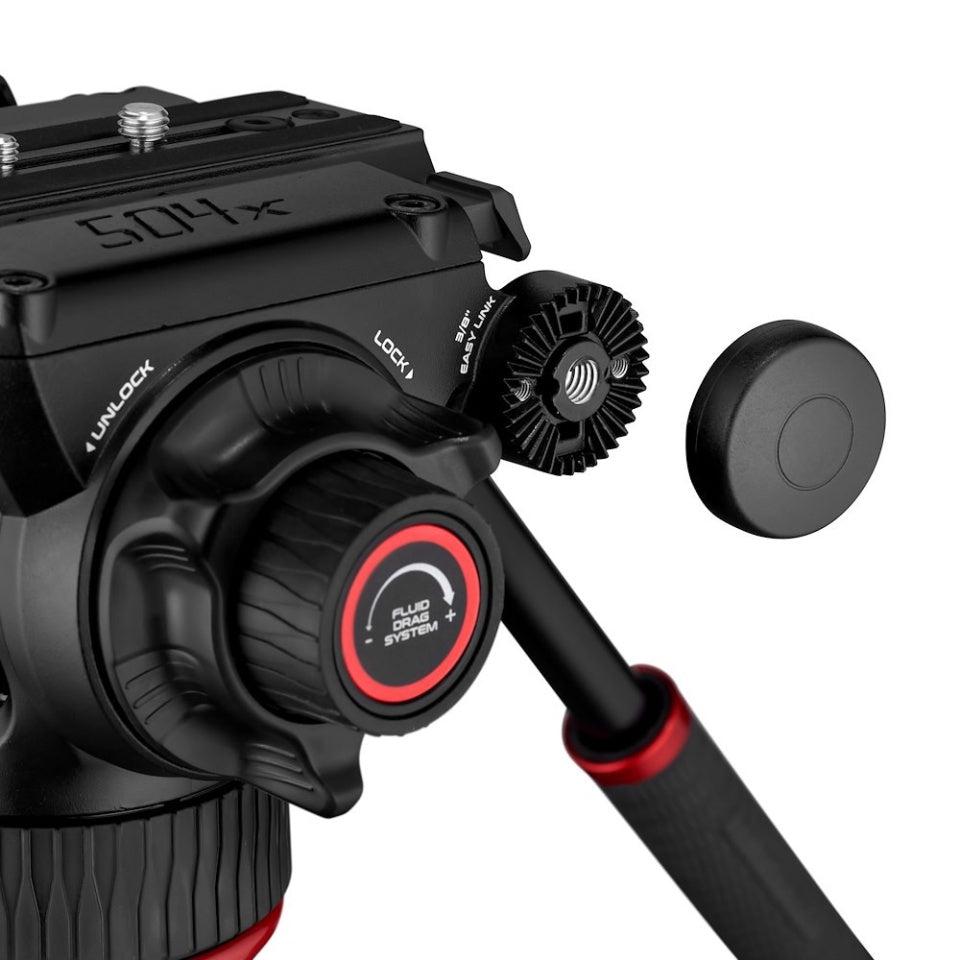

It's a more compact and lighter version that finally comes with flat base (base diameter 75 mm) developed to meet the needs of the most demanding videographers. The head is made from a brand-new catching aluminium design and has a maximum payload of 12kg. Utilising Manfrotto’s new fluid technology the camera head allows you to capture judder-free smooth motion pans and tilts. It's never been easier for the operator to create premium-quality video capture thanks to a 4-step counterbalance system which can carry payloads of up to 6.5 kg at 55mm C.0.G. That makes using a wide range of different cameras easier and more practical. Two easy link 3/8 inch thread connections allow an external monitor or other accessory equipment to be fitted on the head side. On the left side there is a cap cover on the 3/8” easy link connector to avoid cutting during usage.

Specifications

Weight: 2 kg Safety Payload Uni/Pdr 105:2021: 12 kg Counterbalance System: Variable Steps Counterbalance Weight: 2.2 4.4 6.5 kg Base Diameter: 75 mm Material: Aluminium Bubble Spirit Level (No.): 1 Center Of Gravity: 55 mm Safety Payload Weight: 12 kg Powered By (Batteries): Lithium Certifications: WEEE; RoHS Top Attachment: 1/4" screw 3/8" screw Colour: Black Easy Link: Yes Front Tilt: -70° / +90° Ball Flat: Flat Head Type: Video/Fluid Head Maximum Working Temperature: 60 °C Minimum Working Temperature: -30 °C Pan Bar Included: Yes Pan Drag: continuously adjustable from 0 to max level Panoramic Rotation: 360 ° Plate Type: 504PLONGR-1 Quick Release: Yes Tilt Drag: continuously adjustable from 0 to max level Working Height: 14.9 cm Accessory Compatibility: MVAPANBARM; MVAPANBARL
